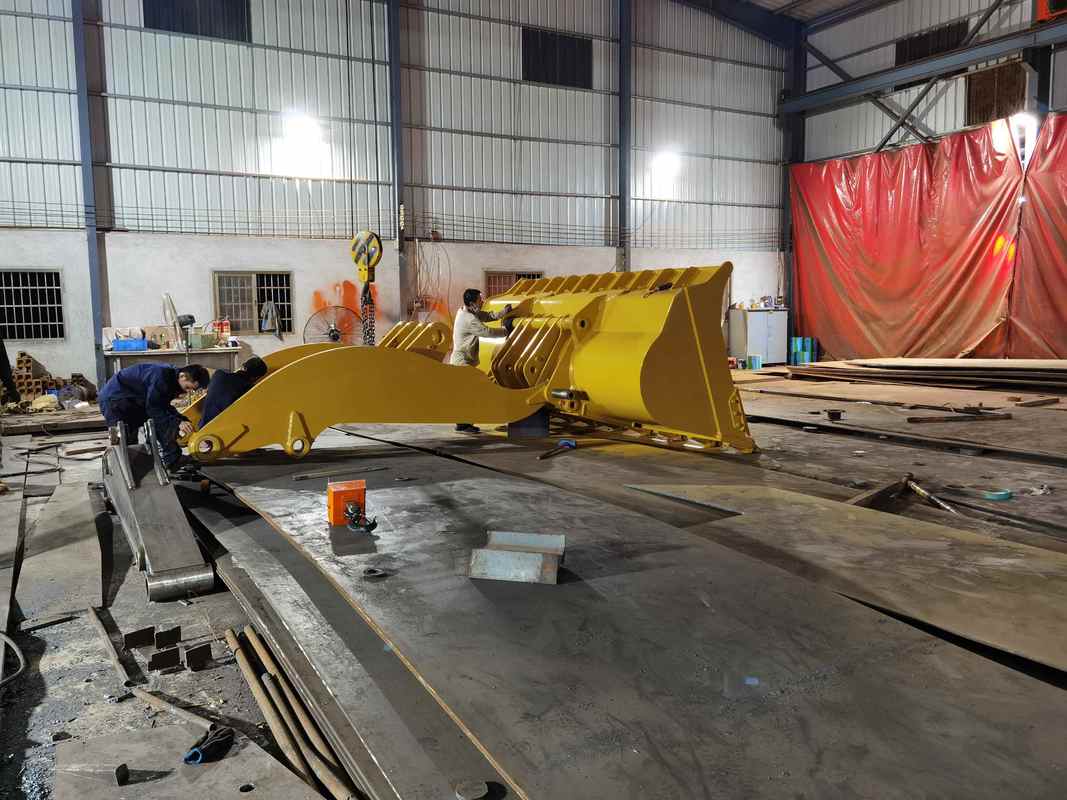

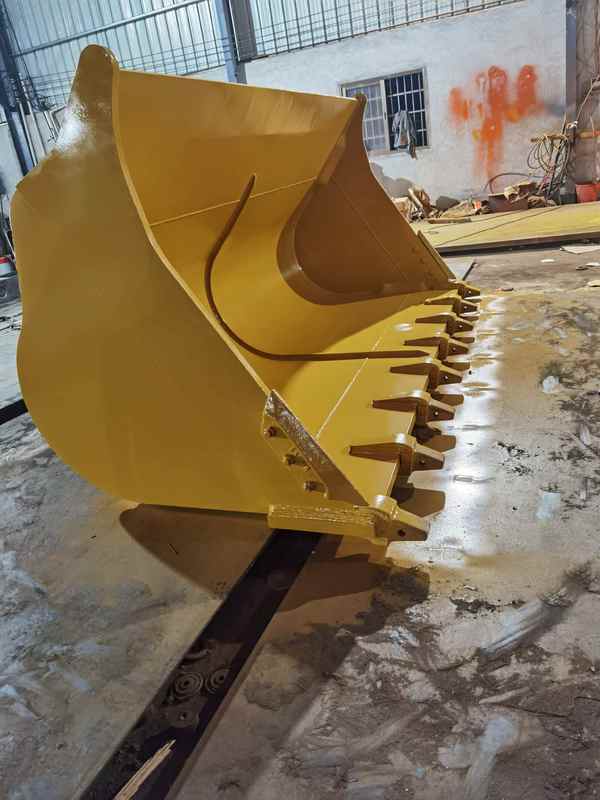

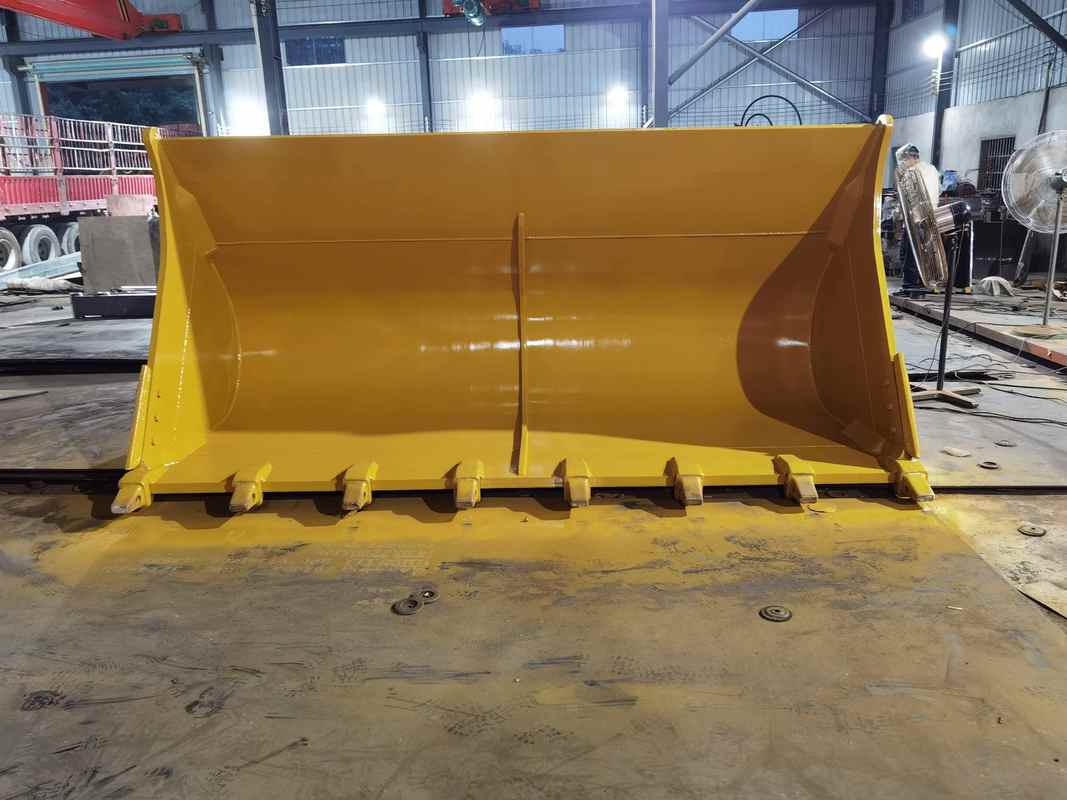

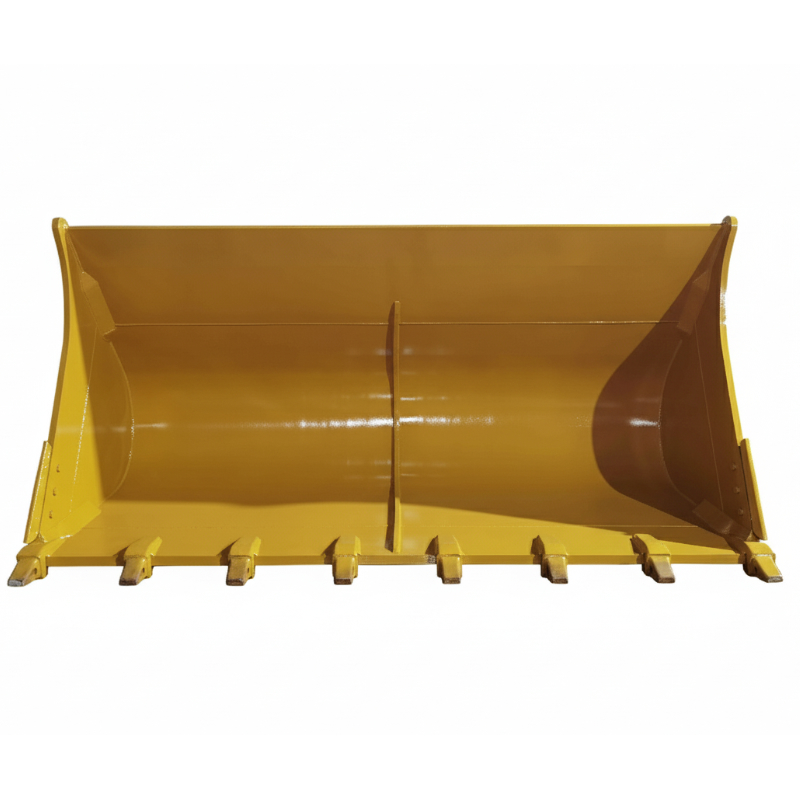

Custom 5.5 Cubic Meter Excavator Bucket for Caterpillar 980 Wheel Loader - Heavy Duty Construction Attachment
Product Description
Maximize your operational efficiency with our Heavy Duty Custom-Made Excavator Bucket, specifically engineered for the Caterpillar 980 series Wheel Loader. This robust 5.5 cubic meter capacity digging tool is constructed from high-strength, abrasion-resistant steel, ensuring exceptional durability and a long service life even in the most demanding environments such as mining, quarrying, and large-scale construction sites. The custom fit guarantees optimal machine compatibility and seamless attachment. Designed for aggressive digging and efficient material handling, this bucket improves load retention and reduces cycle times. Enhance your loader's performance and tackle tough earthmoving projects with this premium, reliable machinery attachment. Available for immediate export and customizable to your exact specifications.
| Parameter | Value (Metric / Imperial) |
|---|---|
| Rated Capacity | 5.4 m³ / 7.1 yd³ |
| Capacity at 110% Fill Factor | 5.9 m³ / 7.75 yd³ |
| Bucket Width (Bolt-On Cutting Edges) | 3.447 m / 11 ft 3 in |
| Bucket Width (Teeth and Segments) | 3.535 m / 11 ft 7 in |
| Bucket Weight Impact (approx.) | 138 kg / 304 lb (added to base machine) |
| Dump Clearance at Max Lift & 45° Discharge (Standard Linkage, Bolt-On) | 3.287 m / 10 ft 9 in |
| Reach at Max Lift & 45° Discharge (Standard Linkage, Bolt-On) | 1.481 m / 4 ft 10 in |
| Digging Depth (Standard Linkage, Bolt-On) | 88 mm / 3.4 in |
| Overall Length (with Bucket Level on Ground, Standard Linkage, Bolt-On) | 9.673 m / 31 ft 9 in |
| Overall Height at Max Lift | 6.435 m / 21 ft 2 in |
| Breakout Force (Standard Linkage, Bolt-On) | 227 kN / 51,008 lbf |
| Static Tipping Load, Straight (ISO, Standard Linkage, Bolt-On) | 22,809 kg / 50,271 lb |
| Fill Factor - Earth/Clay | 115% (density 1.5-1.7 t/m³) |
| Fill Factor - Sand and Gravel | 115% (density 1.5-1.7 t/m³) |
| Fill Factor - Aggregate (25-76 mm) | 110% (density 1.6-1.7 t/m³) |
| Edge Type Options | Bolt-On Cutting Edges; Teeth and Segments Tips |
| Linkage Compatibility | Standard (Z-bar); High Lift; Aggregate Handler |
| Material | Steel (Cat Performance Series design for optimized fill) |
| Standards Compliance | ISO 14397-1:2007; SAE J732C |
Q: Why should I buy from you instead of other suppliers?
A: We operate two companies and one factory, enabling us to provide competitive pricing and superior quality. Our team brings over 20 years of expertise in the machinery industry, ensuring reliable products and service.
Q: How long is your delivery time?
A: For in-stock items, delivery typically takes 10 days. For out-of-stock items, it ranges from 20-30 days. Custom orders will have delivery times confirmed based on the specific order details.
Q: What about quality control?
A: We use advanced testing equipment and skilled personnel to inspect every item for quality assurance. We also verify the correct quantity before shipment to ensure accuracy.
Q: What are your terms of payment?
A: We accept T/T, L/C, Western Union, and other methods. Accepted currencies: USD, EUR, RMB. For orders ≤1,000 USD: 100% payment in advance. For orders ≥1,000 USD: 30% T/T in advance, with the balance due before shipment.
Q: How do I place an order?
A: Provide us with the machine model, part name, part number, and quantity for each item. We'll promptly send you a professional quotation sheet.
